Hybrid street lamps

Hybrid street lamps

Hybrid LED Street Lights – Professional Lighting for Roads, Streets and Pedestrian Crossings Powered by Solar and Wind Energy

The hybrid LED street light is a modern, off-grid lighting solution ideal for roads, streets, pedestrian crossings, parking areas and urban spaces. The system combines solar and wind energy, providing powerful, stable and fully ecological lighting throughout the year – without connection to the electrical grid and without any electricity costs.

How Does a Hybrid LED Street Lamp Work?

Hybrid LED street lights use two independent renewable energy sources, ensuring the system remains efficient even in demanding weather conditions:

  • photovoltaic panel – charges the battery with solar energy during the day,
  • wind turbine – generates energy when there is no sunlight,
  • smart controller – automatically switches on the light after dusk and adjusts its brightness to the surroundings.

The hybrid system guarantees operation even in winter: 10 hours of full illumination per day and at least 40 hours of operation during periods of no sunlight and overcast weather.

Applications of Hybrid LED Street Lights

Hybrid lighting is perfect for locations requiring strong and reliable illumination:

  • urban and local roads and streets,
  • pedestrian crossings and intersections,
  • sidewalks, pathways and pedestrian routes,
  • schools, sports fields and recreational facilities,
  • parking lots and areas surrounding buildings,
  • parks, gardens and recreational zones,
  • private properties and industrial areas,
  • locations without access to the electrical grid.

Main Advantages of Hybrid LED Street Lamps

  • complete independence from the grid – no electricity bills,
  • strong and stable road and street illumination,
  • automatic operation from dusk to dawn,
  • easy installation with no cables, trenches or documentation,
  • resistance to rain, snow, frost and strong winds,
  • eco-friendly, zero-emission operation,
  • enhanced safety for pedestrians and drivers.

Durable and Certified Hybrid Pole Construction

All hybrid poles are produced exclusively in a single manufacturing facility to ensure full technical consistency and safety. Using pole components from different manufacturers is not permitted.

The photovoltaic panel bracket and the LED fixture arm offer full 360° rotation, allowing perfect adjustment of the panel angle and the direction of the light beam – essential for professional street and road lighting.

Materials and Safety Standards

The pole, frame and support elements are made of high-strength S235 steel and comply with the PN-EN 1090 standard certified by an independent, notified body. All components are hot-dip galvanized according to EN ISO 1461, ensuring long-term corrosion protection.

Polish LED Luminaires ENEC / ZETOM – 5-Year Warranty

The LED luminaires we use come exclusively from Polish manufacturers and are certified by ENEC or ZETOM. They feature high luminous efficacy of 138–160 lm/W. Every luminaire is covered by a 5-year warranty.

Hybrid LED Street Lighting – The Best Solution for Road Infrastructure

Hybrid LED street lights are advanced, durable and fully autonomous systems that enhance safety on roads, streets and pedestrian crossings. A hybrid LED street lamp is the perfect solution for modern cities, investors and municipalities focused on energy savings, sustainability and reliable urban lighting.

Hybrid street lighting poles
Hybrid street lights

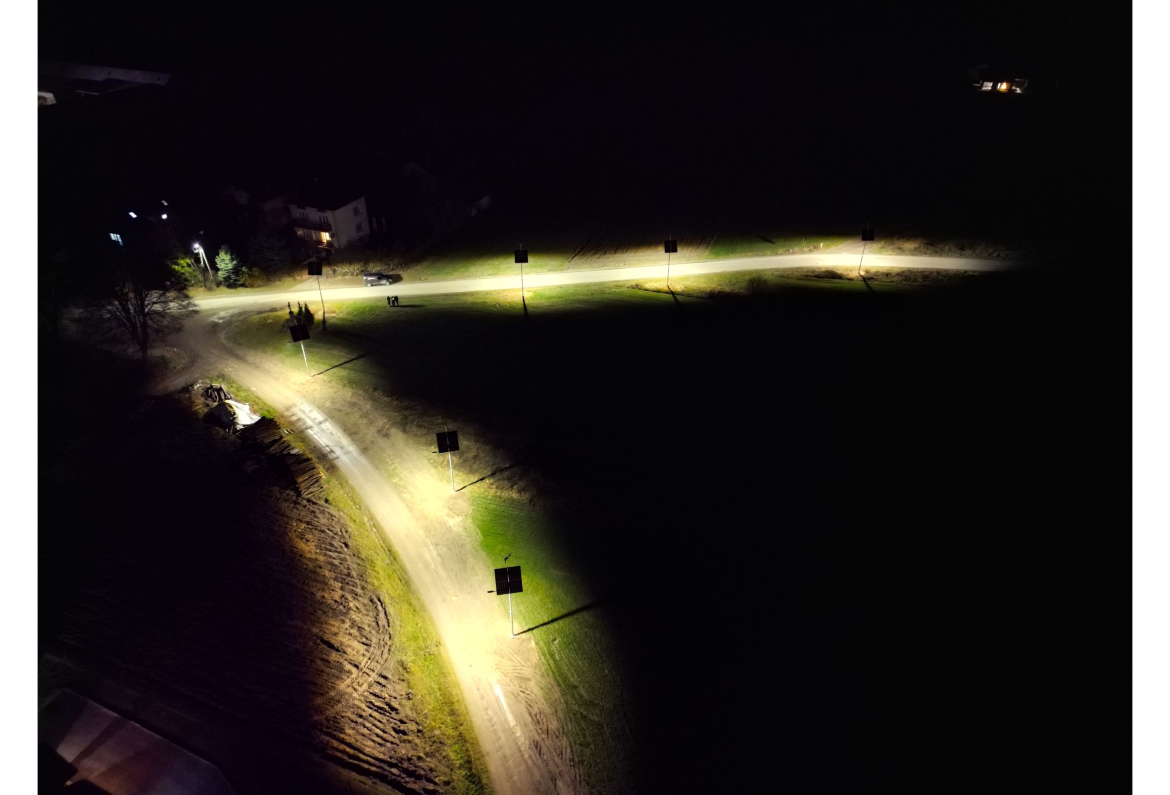

Hybrid street light | BrasiT
LED hybrid street lights at night
Hybrid street lighting
To prepare a commercial offer / send detailed technical specifications, please
Contact

Hybrid street lamps

ModelHLU-20WHLU-38WHLU-50W
Wind turbine

Rated power: 400W 24V / Maximum output power: 500W
Number of blades: 3 pcs. / Material – Carbon Fiber / Diameter: Ø 1330 mm
+ external charge controller, hermetic IP67 for wind turbine

Photovoltaic panel1 pcs. > 340W1 pcs. > 450W 48V2 pcs. x 340W = 680W

Monocrystalline cell, tempered solar glass (thickness 3,2 mm), covered with an anti-reflexive layer, panels tested in accordance with IEC 61215 for snow load of up to 5400 Pa (approx. 5,4 kN/m2).

LED lighting fitting

Made in Poland

Power of the fitting:
20W38W50W
Luminous Flux:

> 2,700 lm
(behind glass – after losses)

> 3,200 lm
(against losses - in front of glass)

> 5,300 lm
(behind glass – after losses)

> 6,100 lm
(against losses - in front of glass)

> 6,900 lm
(behind glass – after losses)

> 8,000 lm
(against losses - in front of glass)

Polish-made LED street luminaire – PL
LED luminous efficacy: 138 – 160 lm/W
Service life: > 100,000 hours
Protection degree: > IP66
Regulated angle of LED head light
Impact resistance: min. IK 09
Color temperature of the LED fixture: 3000K - 5700K
Certificate: ZETOM or ENEC
Solar controllerMPPT 20A 24V2 x MPPT 20A 24V

The light as well as time of operation by MPPT intelligent control, water resistance IP67 class, in-built twilight sensor, automatic brake and cut-off of powered load.

Battery

2 pcs. x 80Ah = 160Ah2 pcs. x 120Ah = 240Ah2 pcs x 200Ah = 400Ah

NPG gel battery for solar installations, fully sealed, full deep discharge cycle,
maintenance-free, > 2,200 discharge cycles.

Battery boxPVC material, placed underground, water resistant type, disperses heat, anti-burglar,
PVC pipe for the cables included in the set.
Optional: enclosure made of stainless steel AISI 304 with EPDM gaskets (intended for installation in wet, rocky, clayey or otherwise challenging soil conditions).
Steel pole
weight approx. 230 kg

Made in Poland		Total height: from 7m to 10m, hot-dip galvanised steel in accordance with EN ISO 1461.
Pole model: "BrasiT", steel grade: S235, frame and bracket: steel S235.
LED fitting hung at: 5m – 8m (according to guidelines)
Wall thickness of the steel pole base: > 6,3 mm
Round pole compliant with EN 40-5:2002.
Vehicle impact class: 0, in accordance with EN 12767.
Structural stability certificates in accordance with EN 40-3-1.
Hybrid pole structure compliant with: PN-EN 1090
The pole, including the structure for photovoltaic panels and the boom arm for the wind turbine, is designed for wind zones I, II or III in accordance with PN-EN 1991-1-4.

Frame for panels with extension arm for LED luminaire with the possibility of rotation around the axis of the pole 360º - independently.

Foundation
weight approx.
450 kg

F200 V43 M24 prefabricated foundation, certified,
Meeting PN-EN 14991:2010 standard in accordance with the 2+ system adjusted to: I, II or III wind zones.

Working time

10-12 hours / day (full power) - battery capacity of up to 4 continuously cloudy and rainy days without sun - min. 44h without sun. There is the option of increasing the independence of lamps work. Five-period operating mode available: adjustable LED luminaire power (%) during night hours, enabling extended autonomous operation.

More models of hybrid street lights can be found on our website:
https://www.brasit.pl/nasza-oferta/hybrydowe-lampy-uliczne

  • The possibility of purchasing an infra-red remote control and Wi-Fi interface with software
    to program and control the lamps from a distance.
  • Poles can be painted in any colour from the RAL range for an additional price.
To prepare a commercial offer / send detailed technical specifications, please
Contact
